• 6-speaker audio system
• Air conditioning, single-zone
• Assist handle, front passenger and driver on A-pillars
• Cruise control, steering wheel-mounted
• Door locks, power
• Seat, rear 60/40 folding bench (folds up), 3-passenger (includes child seat top tether anchor)
• Windows, power with driver express up and down and express down on all other windows

• Air cleaner, high-capacity
• Alternator, 150 amps
• Differential, heavy-duty locking rear
• Exhaust, aluminized stainless-steel muffler and tailpipe
• Four wheel drive
• Frame, fully-boxed, hydroformed front section

• Daytime Running Lamps with automatic exterior lamp control
• StabiliTrak, stability control system with Proactive Roll Avoidance and traction control includes electronic trailer sway control and hill start assist

WHEEL, 17" X 6.5" (43.2 CM X 16.5 CM) FULL-SIZE, STEEL SPARE

• Spare not included with (ZW9) pickup box delete unless a spare tire is ordered.

WORK TRUCK PREFERRED EQUIPMENT GROUP

• includes standard equipment

SUSPENSION PACKAGE, STANDARD

• includes 51mm twin tube shock absorbers and 33mm front stabilizer bar (STD)

TRANSMISSION, 6-SPEED AUTOMATIC, HEAVY-DUTY, ELECTRONICALLY CONTROLLED

• with overdrive and tow/haul mode. Includes Cruise Grade Braking and Powertrain Grade Braking (STD)

PICKUP BOX, WIDESIDE

• (STD)

BED LINER, SPRAY-ON

• Pickup box bed liner with bowtie logo consisting of high pressure
• chemically bonded
• sprayed-on polyurea & polyurethane liner formulation. Liner is permanently bonded to the truck bed providing a water tight seal. The textured
• non-skid surface is black in color and robotically applied to yield consistent 90 mil floor and tailgate thickness along with 50 mil box sidewall thickness. Spray-on liner covers entire bed interior surface below side rails
• including tailgate
• front box top rail
• gage hole plugs and lower tie down loops.

SEATS, FRONT 40/20/40 SPLIT-BENCH, 3-PASSENGER, DRIVER AND FRONT PASSENGER RECLINE

• with outboard head restraints and center fold-down armrest with storage. Vinyl has fixed lumbar and cloth has manually adjustable driver lumbar. (STD)

DARK ASH, CLOTH SEAT TRIM

• with Jet Black interior accents

SKID PLATE PACKAGE, FRAME-MOUNTED SHIELDS

• includes front underbody shield starting behind front bumper and running to first cross-member
• protecting front underbody
• oil pan
• differential case and transfer case

WHEELS, 17" (43.2 CM) PAINTED STEEL

• includes 17"steel spare wheel. Spare not included with (ZW9) pickup box delete unless a spare tire is ordered.

• WHEEL 17" X 6.5" (43.2 CM X 16.5 CM) FULL-SIZE STEEL SPARE Spare not included with (ZW9) pickup box delete unless a spare tire is ordered.
• TRAILER BRAKE CONTROLLER INTEGRATED
• REAR AXLE 4.10 RATIO
• LICENSE PLATE KIT FRONT
• 2015 INTERIM PROCESSING CODE
• BRAKES 4-WHEEL ANTILOCK 4-WHEEL DISC WITH DUAL REAR WHEELS with DuraLife brake rotors
• WORK TRUCK PREFERRED EQUIPMENT GROUP includes standard equipment
• WHEEL TRIM PAINTED TRIM SKINS AND PAINTED CENTER CAPS
• TIRE SPARE LT235/80R17E HIGHWAY
• SUSPENSION PACKAGE STANDARD includes 51mm twin tube shock absorbers and 33mm front stabilizer bar (STD)
• ENGINE VORTEC 6.0L VARIABLE VALVE TIMING V8 SFI E85-COMPATIBLE FLEXFUEL capable of running on unleaded or up to 85% ethanol (360 hp [268.4 kW] @ 5400 rpm 380 lb-ft of torque [515.0 N-m] @ 4200 rpm) with (E63) fleetside pickup box; (322 hp [240.1 kW] @ 4400 rpm 380 lb-ft of torque [515.0 N-m] @ 4200 rpm) with (ZW9) pickup box delete (STD)
• TRANSMISSION 6-SPEED AUTOMATIC HEAVY-DUTY ELECTRONICALLY CONTROLLED with overdrive and tow/haul mode. Includes Cruise Grade Braking and Powertrain Grade Braking (STD)
• PICKUP BOX WIDESIDE (STD)
• BED LINER SPRAY-ON Pickup box bed liner with bowtie logo consisting of high pressure chemically bonded sprayed-on polyurea & polyurethane liner formulation. Liner is permanently bonded to the truck bed providing a water tight seal. The textured non-skid surface is black in color and robotically applied to yield consistent 90 mil floor and tailgate thickness along with 50 mil box sidewall thickness. Spray-on liner covers entire bed interior surface below side rails including tailgate front box top rail gage hole plugs and lower tie down loops.
• PAINT SOLID
• TIRES LT235/80R17E ALL-SEASON HIGHWAY
• BACKUP ALARM 97 DECIBELS
• LAMPS SMOKED AMBER ROOF MARKER
• SEATS FRONT 40/20/40 SPLIT-BENCH 3-PASSENGER DRIVER AND FRONT PASSENGER RECLINE with outboard head restraints and center fold-down armrest with storage. Vinyl has fixed lumbar and cloth has manually adjustable driver lumbar. (STD)
• DARK ASH CLOTH SEAT TRIM with Jet Black interior accents
• SKID PLATE PACKAGE FRAME-MOUNTED SHIELDS includes front underbody shield starting behind front bumper and running to first cross-member protecting front underbody oil pan differential case and transfer case
• SINGLE-SLOT CD/MP3 PLAYER
• BLACK
• GVWR 13 025 LBS. (5908 KG) WITH DUAL REAR WHEELS
• WHEELS 17" (43.2 CM) PAINTED STEEL includes 17"steel spare wheel. Spare not included with (ZW9) pickup box delete unless a spare tire is ordered.
• CHEVROLET MYLINK AUDIO SYSTEM 4.2" DIAGONAL COLOR SCREEN WITH AM/FM STEREO USB ports auxiliary jack SD card slot Bluetooth® streaming audio for music and most phones hands-free smartphone integration Pandora Internet radio and voice-activated technology for radio and phone (Requires (UE1) OnStar and (VV4) OnStar 4G LTE Wi-Fi Hotspot.)
• Locking/Limited Slip Differential
• Four Wheel Drive
• Tow Hitch
• ABS
• 4-Wheel Disc Brakes
• Steel Wheels
• Tires - Front All-Season
• Tires - Rear All-Season
• Tow Hooks
• AM/FM Stereo
• MP3 Capability
• Bluetooth® Connection
• Auxiliary Audio Input
• Smart Device Integration
• Split Bench Seat
• Pass-Through Rear Seat
• Rear Bench Seat
• Adjustable Steering Wheel
• Power Windows
• Power Door Locks
• Cruise Control
• A/C
• Traction Control
• Stability Control
• Daytime Running Lights
• Driver Air Bag
• Passenger Air Bag

• Brakes
• Brake ABS System: 4-Wheel
• Brake Type: Pwr
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Cargo Area Dimensions
• Cargo Box (Area) Height (in): 21.22
• Cargo Box Length : Floor (in)
• Cargo Box Width : Floor (in)
• Cargo Box Width : Top, Rear (in)
• Cargo Box Width : Wheelhousings (in)
• Cargo Volume (ft³): 76.3
• Electrical
• Cold Cranking Amps : 0° F (2nd)
• Cold Cranking Amps : 0° F (Primary)
• Maximum Alternator Capacity (amps): 150
• Emissions
• Tons/yr of CO2 Emissions : 15K mi/year
• Exterior Dimensions
• Cab to Axle (in): 55.24
• Front Bumper to Back of Cab (in): 151.10
• Ground Clearance, Rear (in): 8.53
• Ground to Top of Load Floor (in): 39.41
• Height, Overall (in): 78.07
• Length, Overall w/o rear bumper (in): 258.4
• Wheelbase (in): 167.70
• Width, Max w/o mirrors (in): 80.51
• Frame
• Frame Type: Hydroformed
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 36.0
• Interior Dimensions
• Front Head Room (in): 42.80
• Front Hip Room (in): 60.73
• Front Leg Room (in): 45.27
• Front Shoulder Room (in): 64.84
• Passenger Capacity: 6
• Second Head Room (in): 40.50
• Second Hip Room (in): 60.24
• Second Leg Room (in): 40.93
• Second Shoulder Room (in): 64.33
• Steering
• Steering Ratio (:1), At Lock: N/A
• Steering Ratio (:1), On Center: 16.00
• Steering Type: Pwr Recirculating Ball
• Turning Diameter - Curb to Curb (ft): 56.1
• Turning Diameter - Wall to Wall (ft): N/A
• Summary
• Body Code: E63
• Body Style: Crew Cab Pickup

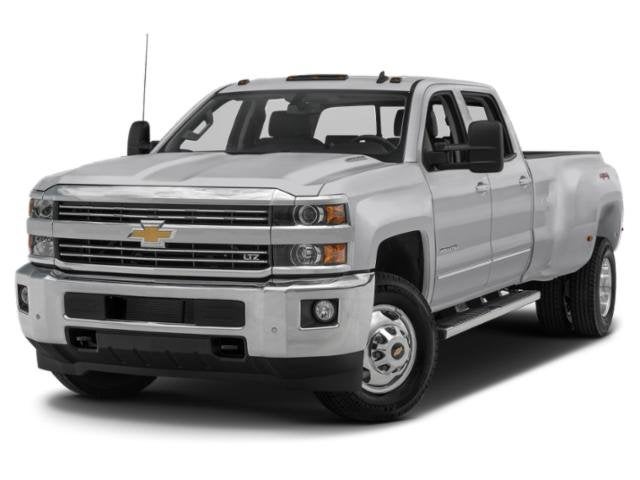

• Vehicle Name: Chevrolet Silverado 3500HD Built After Aug 14
• Suspension
• Axle Capacity - Front (lbs): 4800
• Axle Capacity - Rear (lbs): 7050
• Axle Ratio (:1) - Rear: 4.10
• Axle Type - Front: Independent
• Axle Type - Rear: Full-Floating
• Shock Absorber Diameter - Front (mm): 51.00
• Shock Absorber Diameter - Rear (mm): 51.00
• Spring Capacity - Front (lbs): 4800
• Spring Capacity - Rear (lbs): 7050
• Stabilizer Bar Diameter - Front (in): 1.31
• Suspension Type - Front: Independent
• Suspension Type - Rear: Multi-Leaf
• Tires
• Front Tire Order Code: QQO
• Front Tire Size: LT235/80R17E
• Rear Tire Order Code: QQO
• Rear Tire Size: LT235/80R17E
• Revolutions/Mile : 45 mph - Front
• Revolutions/Mile : 45 mph - Rear
• Revolutions/Mile : 45 mph - Spare
• Spare Tire Order Code: ZQO
• Spare Tire Size: LT235/80R17E
• Trailering
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 3425
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 13700
• Maximum Trailering Capacity (lbs): 22600
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1300
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 13000
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 4800
• Gross Axle Wt Rating - Rear (lbs): 7050
• Gross Combined Wt Rating (lbs): 20500
• Gross Vehicle Weight Rating Cap (lbs): 13025
• Wheels
• Front Wheel Material: Steel
• Front Wheel Size (in): 17 x 6.5
• Rear Wheel Material: Steel
• Rear Wheel Size (in): 17 x 6.5
• Spare Wheel Material: Steel
• Spare Wheel Size (in): 17 x 6.5
